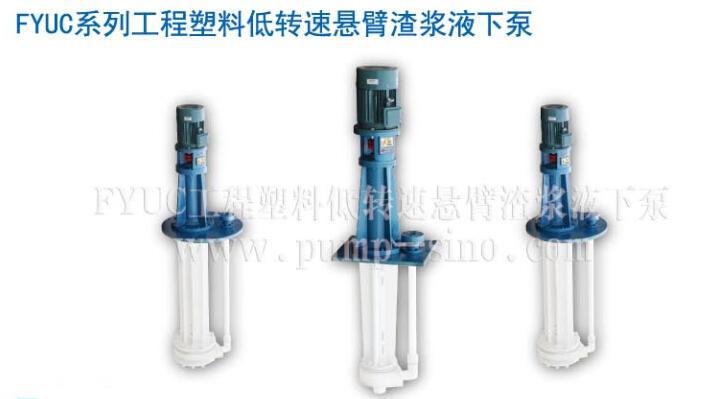

FYUC engineering plastic low-speed cantilever slurry submerged pump

I. General introduction

The FYUC series of engineering plastics low-speed cantilever residue slurry pump is developed on the basis of successful experience and mature technologies of absorbing the development of high speed serial FYUB cantilever liquid FDU pump and low-speed serial horizontal pump.The series of flow components pump adopted the ultra-high mol ecular weight polyethylene (UHMWPE) production, has excellent anti-corrosion, anti-abrasive and anti-impact properties; Meanwhile, the application of axis cantilever structure and the abolition of the lower part of the auxiliary supports, thorough settled the difficulties of the lower part of the auxiliary can not support cooling water and lubrication of non anti-abrasion etc.Due to the low speed, the pump gains better anti-abrasion property and stable operation. Particularly applicable to the corrosive media that contains high volume solidity particles without cooling water. (including the weight of solid particle concentrations ≤ 20% Solid particle diameter less than 1.0mm), the application of the pump ≤ 80 ° C.
Comparing with FYUB cantilever high speed liquid pump, the FYUC series of low-speed cantilever residue slurry pump series is more superior. Owing to its high speed, FYUB series of high-speed cantilever fluid pump sometimes have big vibration, thus the anti-abrasion properties of impeller is also comparatively low. The bearings sometimes gets fever; Moreover, due to its high speed, depth can not be carried out too deep, only one meter below allows. FYUC series of low-speed cantilever residue slurry pump, as its low-speed and small vibration, fair anti-abrasion impeller, therefore the bearing heats quite slight; Moreover, due to its low speed, liquid depths can be carried out deeper, ranging 1.5 meters to 2 meters, which greatly increased the scope of pump application. The pump can be opened in empty.
Comparing with similar stainless steel cantilever pump,FYUC series pump owns light weight, low cost and more extensive anti-corrosive properties, superior anti-abrasion and other advantages that can be widely used in chemical industry, nonferrous metal smelting (gold, silver, copper, lead, zinc, tin, cobalt, tungsten, nickel, etc.), black smelting (steel pickling, Mn-industry), rare metals, and chemical fibers, and pesticides and phosphate compound fertilizer and titanium dioxide, citric acid, Dye, RE, desulfurization plant, a sewage treatment and other industries with large particle transport of acid, alkali and salt and other corrosive media.

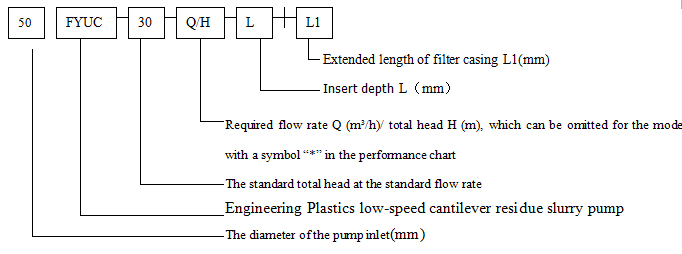

II. Demonstration of model

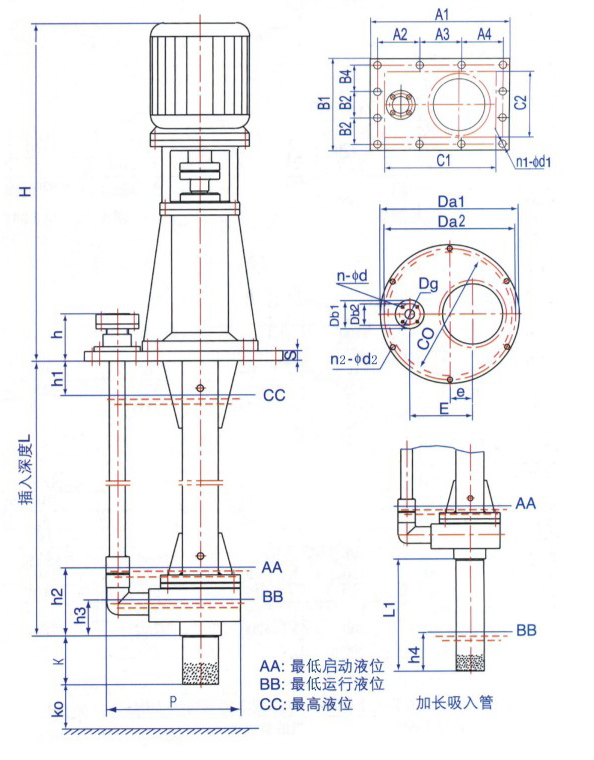

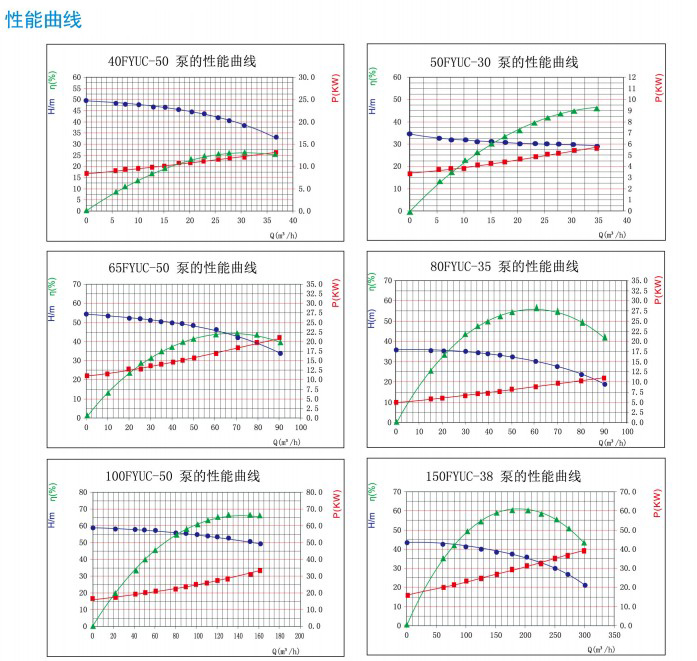

Performance curve Performance parameters Structure description Overall size and mounting size of the pump

1. Structural type is vertical, single-stage and single suction centrifugal pump.
2. Adopts high-rigidity cantilever spindle, without auxiliary bearing structure.
3. Main parts:

1) Motor 2) Motor base 3) Discharge flange 4)Upper and lower bearing 5) Outlet pipe 6) Pump cover 7) Impeller
8) Outlet pipe bed 9) Bend 10) Filter casing 11) Coupling 12) Bearing base 13) Base plate 14)Joint pipe
15) Pump bolt 16)Plastic coated spindle 17)Impeller equilizing bed 18) Pump cover bed 19)Impeller end assembly
20) Pump body 21) Filter casing bed

4. Impeller, pump body and other flow passage components are manufactured with ultra-high molecular weight polyethylene (UHPE), other parts are manufactured with corrosion resistant PP and FRPP.
5. Direction of rotation: according to arrow pointing direction.

型號			40FYUC-50	50FYUC-30	65FYUC-50	80FYUC-35	100FYUC-50	150FYUC-38	150FYUC-24	150FYUC-45	200FYUC-20
插入深度 L ≤ 1500 mm	外形	H	1453	1220	1498	1453	1710	1898	1873	2061	2058
		h	150	145	160	160	205	255	255	255	385
		K	112	112	180	180	218	260	260	260	353
		K0	>120	>120	>150	>150	>180	>200	>200	>250	>300
		P	670	592	741	687	830	950	950	950	1131
		E	384	337	420	388	468	528	528	528	645
		e	90	97.5	115	100	133	160	160	145	269
		S	40	35	40	40	50	60	60	60	65
		L1	500、750、1000、1500、1750、2000
	方形底板	A1	980	800	980	980	1000	1200	1200	1300	1460
		A2	465	375	465	465	475	380	380	410	460
		A3	0	0	0	0	0	380	380	410	460
		A4	465	375	465	465	475	380	380	410	460
		B1	780	600	780	780	850	900	900	1000	950
		B2	365	275	365	365	400	275	275	310	290
		B3	0	0	0	0	0	275	275	310	290
		B4	365	275	365	365	400	275	275	310	290
		C1	800	650	820	800	880	1040	1040	1100	1220
		C2	600	450	600	600	710	700	700	800	710
		n1	8	8	8	8	8	12	12	12	12
		d1	23	23	23	23	23	24	24	24	24
	圓形底板	Da1	980	800	980	980	1000	不配圓形底板	不配圓形底板	不配圓形底板	不配圓形底板
		Da2	930	750	930	930	950
		C0	800	650	820	800	880
		n2	8	8	8	8	8
		d2	23	23	23	23	23
插入深度 L > 1500 mm	外形	H	1773	1650	1818	1773	2020	2048	2023	2232	2200
		h	150	145	160	160	205	255	255	255	385
		K	112	112	180	180	218	260	260	260	353
		KO	>120	>120	>150	>150	>180	>200	>200	>250	>300
		P	725	750	760	742	840	950	950	1050	1131
		E	440	440	420	420	468	528	528	629	645
		e	100	90	85	85	110	160	160	170	250
		S	60	50	60	60	60	60	60	60	65
		L1	500、750、1000、1250、1500、1750、2000
	方形底板	A1	1300	1200	1300	1300	1350	1400	1400	1670	1520
		A2	625	575	625	625	650	445	445	535	480
		A3	0	0	0	0	0	445	445	535	480
		A4	625	575	625	625	650	445	445	535	480
		B1	1100	1000	1100	1100	1200	1100	1100	1325	1100
		B2	525	475	525	525	575	345	345	420	365
		B3	0	0	0	0	0	345	345	420	290
		B4	525	475	525	525	575	345	345	420	365
		C1	1000	950	1000	1000	1100	1135	1135	1400	1280
		C2	850	750	850	850	950	835	835	1050	900
		n1	8	8	8	8	8	12	12	12	12
		d1	23	23	23	23	23	24	24	24	24
出口法蘭		Db1	150	150	185	185	200	250	250	250	285
		Db2	110	110	145	145	160	210	210	210	240
		n	4	4	4	4	8	8	8	8	8
		d	18	18	18	18	18	18	18	18	23
		Dg	40	40	65	65	80	125	125	125	150
液位		h1	150	150	180	180	200	250	250	250	300
		h2	250	250	250	250	250	400	400	400	400
		h3	200	200	280	280	350	400	400	400	520
重量（Kg）			517	313	587	503	834	1028	1000	1476	1224

【 back 】【 order 】

	•	FUH engineering plastic horizontal pump
	•	FDU engineering plastic low-speed slurry pump
	•	FLU engineering plastic filter pump
	•	FCU engineering plastic side suction pump
	•	FTU ceramic plastic composite pump
	•	FYUB engineering plastic cantilever type submerged pump
	•	FYUC engineering plastic low-speed cantilever slurry submerg
	•	FZU engineering plastic vertical self-priming pump
	•	FRU hose pump
	•	FGU engineering plastic pipeline pump
	•	FQU engineering plastic pump
	•	FPZJ water jet vacuum unit

Company:	Yixing Linggu Plastic Equipment Co., Ltd.
ADD:	Yixing porcelain DingShu Zhen Tong Li Industrial Park Road on the 1st
Zipcode:	214222
Contact:	Chen bosheng
Tel:	+86-510-87409633,87403572,87403345
Fax:	+86-510-87426968
E-mail:	pump-cbs@pub.wx.jsinfo.net
website:	http://m.0311-88899360.com/
Shopsales:	http://yxlgby.1688.com

Home| About| Product| Honor| Style| Online| Contact| 中文版

Model	*Inletoutlet**	Quantity of flowm3/h	Quantity of flow m3/h	Head of delivery m	Head of delivery m	Click
40FYUC-50	40×40	15	3~25	46	48~8	Details
50FYUC-30	50×40	20	3.3~30	30	32~6.2	Details
65FYUC-50	65×65	30	13.5~70	50	52~9	Details
80FYUC-35	80×65	40	13.3~60	35	37~6.6	Details
100FYUC-50	100×80	100	47.5~140	50	52~6	Details
150FYUC-38	150×125	150	65~250	38	40~9	Details
150FYUC-24	150×125	220	100~300	24	35~4	Details
150FYUC-45	150×125	250	100~400	45	54~6.5	Details
200FYUC-20	200×150	400	200~500	20	28~3.5	Details
