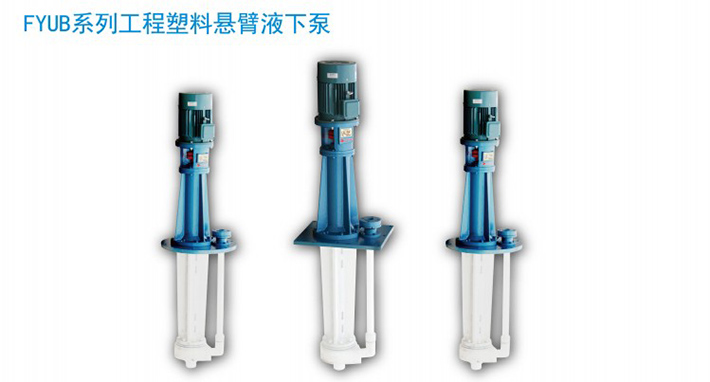

FYUB engineering plastic cantilever type submerged pump

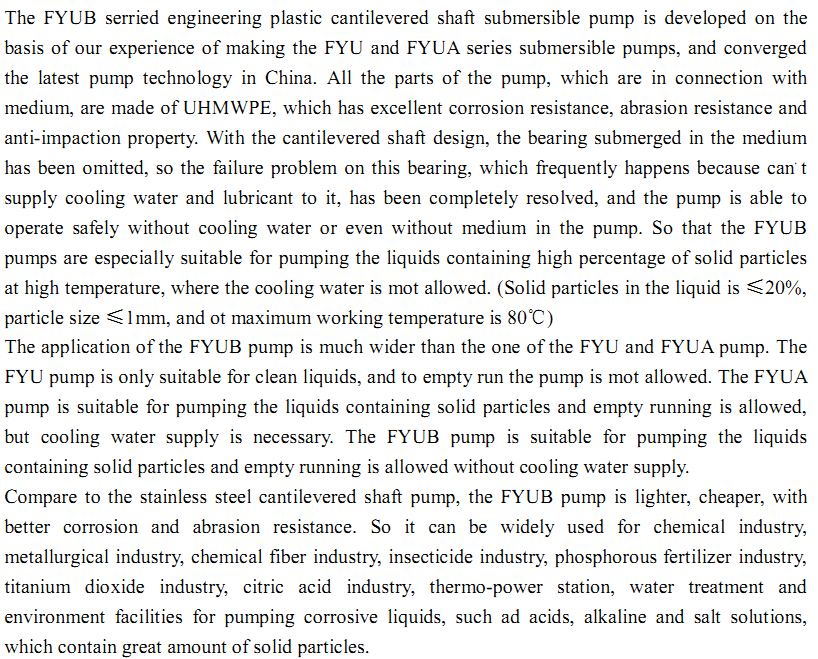

I. General introduction

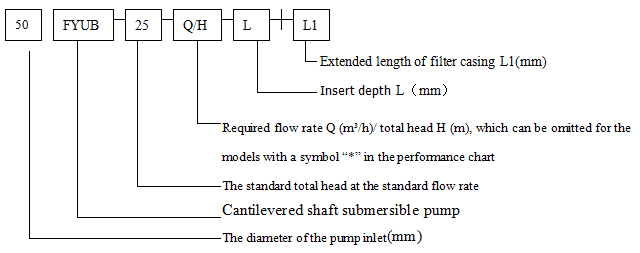

II. Demonstration of model

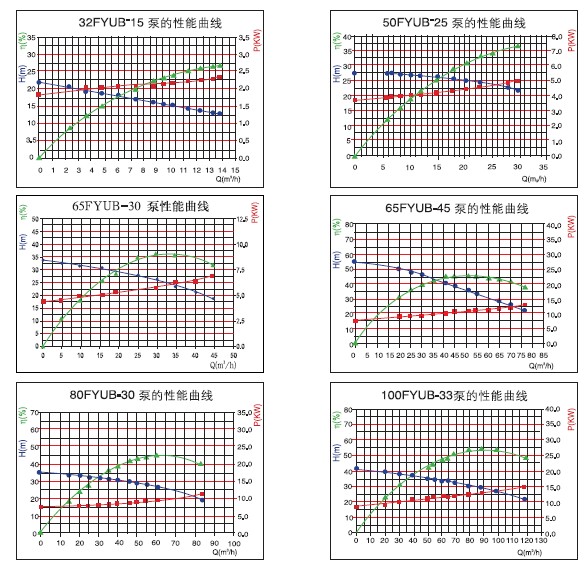

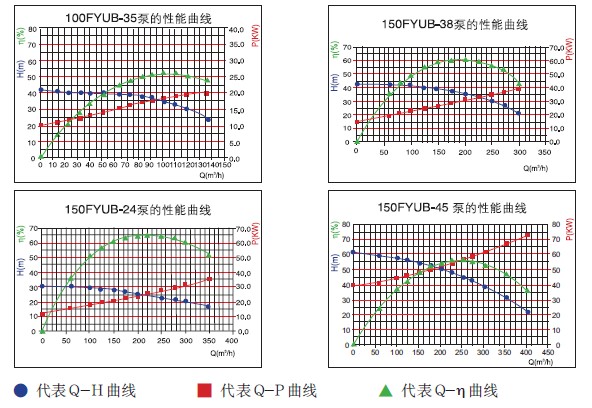

Performance curve Performance parameters Structure description Overall size and mounting size of the pump

1.Structural type is vertical, single-stage and single suction centrifugal pump.
2.Adopts high-rigidity cantilever spindle, without auxiliary bearing structure.

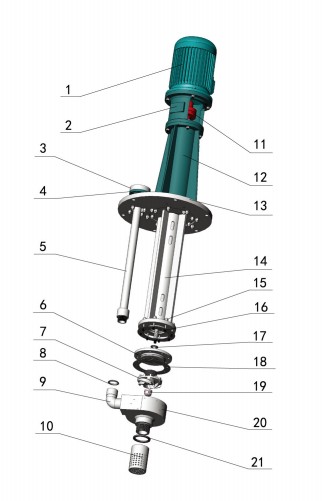

3.Main parts (refers to picture 1)

1) Motor 2) Motor base 3) Discharge flange 4)Upper and lower bearing 5) Outlet pipe 6) Pump cover 7) Impeller
8) Outlet pipe bed 9) Bend 10) Filter casing 11) Coupling 12) Bearing base 13) Base plate 14)Joint pipe
15) Pump bolt 16)Plastic coated spindle 17)Impeller equilizing bed 18) Pump cover bed 19)Impeller end assembly 20) Pump body 21) Filter casing bed

4. Impeller, pump body and other flow passage components are manufactured with ultra-high molecular weight polyethylene (UHPE), other parts are manufactured with corrosion resistant PP and FRPP.

5.Direction of rotation: according to arrow pointing direction.

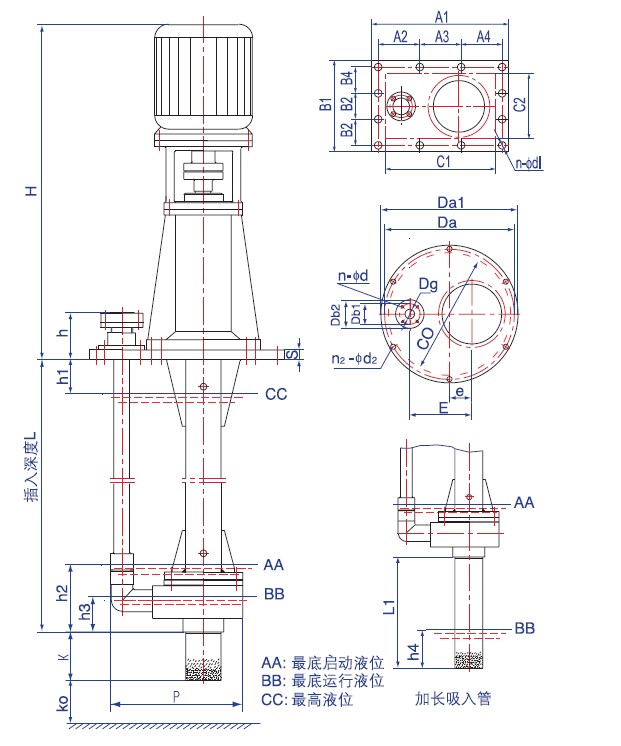

AA: Lowest allowable starting level BB: Lowest allowable operation level
CC：highest level

Model		32FYUB-15	50FYUB-25	65FYUB-30	65FYUB-45	80FYUB-30	100FYUB-33	100FYUB-35	150FYUB-38	150FYUB-24	150FYUB-45
OUERAL DIMENSIONS	H	1110	1215	1235	1350	1338	1405	1595	1677	1652	1841
	h	125	145	160	160	160	200	205	255	255	255
	K	95	112	180	180	180	218	218	260	260	260
	KO	＞120	＞120	>150	＞150	＞150	＞180	＞180	＞200	＞200	＞250
	P	380	400	520	548	481	595	652	950	950	950
	E	230	230	310	305	265	332	362	528	528	528
	e	50	50	95	80	90	104	105	160	160	145
	S	30	30	35	40	35	45	50	60	60	60
	L1	500、750、1000、1250、1500、1750、2000
SQUARE BASE PLATE	A1	600	600	800	850	645	850	900	1200	1200	1300
	A2	277.5	277.5	375	400	300	400	427.5	380	380	410
	A3	0	0	0	0	0	0	0	380	380	410
	A4	277.5	277.5	375	400	300	400	427.5	380	380	410
	B1	500	500	600	700	500	700	750	900	900	1000
	B2	227.5	227.5	275	325	227.5	325	352.5	275	275	310
	B3	0	0	0	0	0	0	0	275	275	310
	B4	227.5	227.5	275	325	227.5	325	352.5	275	275	310
	C1	500	500	650	660	550	740	800	1040	1040	1100
	C2	400	400	450	510	400	590	650	725	725	800
	n1	8	8	8	8	8	8	8	12	12	12
	d1	23	23	23	23	23	23	23	24	24	24
ROUND BASE PLATE	Da1	600	600	800	850	645	850	900	No	No	No
	Da2	555	555	750	800	600	800	855	Round	Round	Round
	C0	500	500	650	660	550	740	800	Base	Base	Base
	n2	6	6	8	8	6	8	8	plate	plate	plate
	d2	23	23	23	23	23	23	23
PLANGE FOR OUTLET	Db1	115	150	185	185	185	200	200	250	250	250
	Db2	85	110	145	145	145	160	160	210	210	210
	n	4	4	4	4	4	8	8	8	8	8
	d	14	18	18	18	18	18	18	18	18	18
	Dg	25	40	65	65	65	80	80	125	125	125
LIQUID LEVEL	h1	150	150	180	180	180	200	200	250	250	250
	h2	250	250	250	250	250	250	250	400	400	400
	h3	150	150	150	150	150	150	150	250	250	250
	h4	180	200	280	280	280	380	350	400	400	400
WEIGHT(kg)		188	222	250	305	297	497	670	990	954	1370
