FUH engineering plastic horizontal pump

I. General introduction

The FUH pump is a horizontal single stage, single suction centrifugal pump with support frame. This series of pump is meticulously designed by using imported technology and converged the advantages of the best corrosion resistant pumps in China. The FUH series pumps won the National Awards of the New Product in 1995.
All the parts of the pump, which are in connection of the pumped liquid, are made of ultra-high molecular weight polyethylene (UHMWPE), which has excellent corrosion resistance, abrasion resistance (The best of the plastic) and anti-impact property. There are various types of shaft seals for selection: mechanical seals, dynamic seals and packing seals etc. The pumps are suitable for pumping clean acid or alkaline, as well the slurry and sewage containing solid particles. The pumps display its excellent properties when pumping hydrofluoric acid, fluorosilicon acid, phosphoric acid, hydrochloric acid, diluted sulphuric acid, concentrated alkaline solution, electrolyte and various mixed acid.
The range of the working temperature of the pump is from –50 ºC to 100 ºC. This temperature can be increased to 120 ºC if change its impeller and casing with the ones made of PVDF, F46 or CPE.
The FUH series pumps are the horizontal centrifugal pumps with single suction and single delivery pipe with suspending shaft.

II. Application

The FUH series pumps are widely used for pumping liquids such as acid, alkaline, salts, oil, beverages and wine, whatever the liquids are clean or containing solid particles. In nonferrous metal industry, especially the pumps can be used for pumping various acids, electrolytes, sewages, ore magma or other serous materials in the hydro-metallurgical process for lead, zinc, gold, silver, copper, cobalt, tungsten and rare earth, for pumping diluted acid (pickling acid), parent liquid, hydrofluoric acid, fluoro-silicon acid, sea water and phosphoric acid in chemical fertilizer industry, for pumping different sewages in the food industry, electric planting factories, leather treatment factories, medicine industry, paper making industry, textile industry and electronic industry; for pumping sulphuric acid or hydrochloric acid in the iron and steel industry, used in the acid catalysed cleavage, settling, refrigeration, hydrologic, water washing, salts treatment process in titanium dioxide pigment industry, used in the fermentation, neutralizing, pressure filtration, water treatment in citric acid factories. The UHMWPE pumps are first selection of the alternatives of the imported pumps and other similar metal or non-metal pumps made in China.
The FUH pumps can be used in explosive condition by equipping with anti-explosive motor.

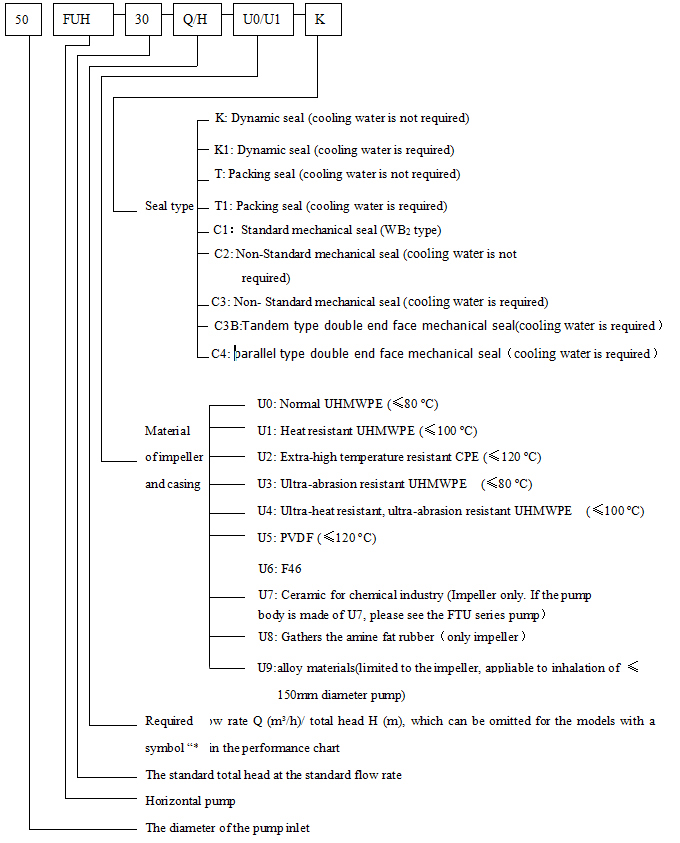

III. Demonstration of model

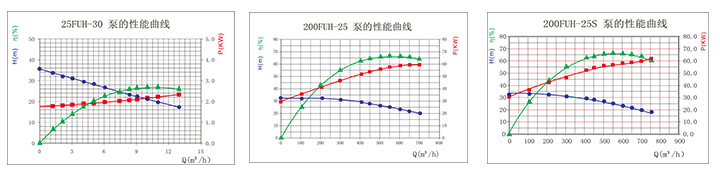

Performance curve Performance parameters Structure description Overall size and mounting size of the pump

Main parts (refers to picture 1)

Comparison of the different types of seals

Type of Seal	Features	Application
K Type Dynamic Seal	Using 2-3 oil seal rings made of fluoro-rubber as seal parts. It is simple, reliable and cheap. It is not allowed to empty run the pump for more than 5 minutes.	It is a general purpose seal used for clean corrosive liquids or the slurry and sewages containing ≤5% solid particles (Except alkaline solution)
K1 Type Dynamic Seal	As same as K type, but empty run is allowable because there is cooling water supply. Its service life is longer than K type.	As same as K type
C1 Type Standard Mechanical Seal	Use WB2 type standard mechanical seal. There are different materials of the seal rings for selection	Suitable for clean liquids. Also can be used for the liquids containing trace solid by using the seal rings made of hard materials.
C2 Type Non-standard Mechanical Seal	This is an internal self-cooling mechanical seal. Both the rotating ring and stationary ring are made of SiC. Cooling water is not required. Maximum empty running time is 20 min. It is expensive, but its service life is longer than the T and T1 types.	It is suitable for the corrosive liquids containing solid particles between 5%-35%.
C3 Type Non-standard Mechanical Seal	As same as above, but with cooling water supply. To empty run the pump for more 20 minutes is allowable. Its service life is longer than C2 type.	As same as C2 type.
C3BType Double Mechanical Seal	It has reliable sealing property, and it can extend service life.	The same as above.
C4 Type Double Mechanical Seal	It has compact structure, high reliability, long service life. It is convenient for installation and maintenance.	Suitable for clear liquid or slurry with high solid content (5%¡Üsolid content¡Ü35%), and sewage containing impurities, and other corrosive media, it has wide range of application.
T Type Packing Seal	Use expanded Teflon packing. Can stand corrosion and erosion. It is simple and reliable.	Suitable for the corrosive liquids containing big amount of solid particles (25%-40%) or the sewages with big amount of foreign matters.
T1 type Packing Seal	As same as T type, but with cooling water supply. Its service life is longer than that of T type.	As same as T type.

Note: The cooling water for seals above must be clean water. the yield of water50~80kg/h,pressure 0.5~1.0kg/cm2

T2 balanced type Packing Seal

Combined packing and seal, corrosion and wear resistance, simple structure, no leakage, cooling water is required, water pressure required between 1.5 ~ 4 kg/cm2 clean running water.

Suitable for the corrosive liquids containing large amounts of solid particles or easy crystallization medium, and medium are allowed a small amount of cooling water

Note: The cooling water for seals above must be clean water. Pressure1.5~4kg/cm2

K, K1 TYPE DYNAMIC SEAL: FIG. 2 & FIG. 3

This is a dynamic seal using latest imported technology. It is composed of expeller on the back of impeller and rubber seal rings. When the pump is in operation, the centrifugal force, which is created by the expeller, maintains a negative pressure in the annular seal space, so there is no any leakage. At same time, the lips of the rubber seals is not touching the sleeve, so there is no any erosion between the rubber seals and sleeve. When the pump is stopped, the pressure in the stuffing box becomes positive. It presses the lips of the rubber seals touching the sleeve closely, so the gap between the rubber seals and sleeve is sealed up. If the mixing of the cooling water with the medium is allowable, the K1 type is recommended, which possesses cooling water nipple, so the cooling is more effective (See fig. 2). The rubber seal rings are made of fluoro-rubber (Viton). K & K1 type seals are suitable for handling the liquids containing high percentage of solid particles.

(The cooling water for K1 type seal must be clean water)

C2 TYPE NON-STANDARD MECHANICAL SEAL: FIG. 6

this is an internal non-standard mechanical seal designed by Yixin Engineering Plastic Pump Factory. No cooling

water is required by using heat conductive oil and air cooling system. Both the static ring and rotating ring

are made of SiC. So this kind of the seal is suitable for pumping corrosive liquids containing big amount of

solid particles. (The heat conductive oil is 25# transformer oil)

C3B type double end facemechanical seal：
My company design this built-in type non-standard mechanical seal on the basis of C3 mechanical seal.The original rear cooling water oil seal was changed to the relatively independent mechanical seal structure with the primary seal.When the cooling water pressure in excess of the prescribed value,the rear of the mechanical seal can automatic pressure relief to ensure the primary seal in allowing end face specific pressure within the scope of work and reduce the abrasion of the ring and static ring.Its life is longer than C3 type mechanical seal.The seal can be used to transport corrosive liquids which contain large amounts of particles.

C4 type double end face mechanical seal：
My company design the latest parallel type double end face mechanical seal with mounted outside and multiple springs structure.Its biggest characteristic is the ring and static ring have grooves corresponding to the place to form two parallel sealing surface and at the same time can transport cooling water.Ring and static ring is made of silicon carbide,only silicon carbide and fluorine rubber contact medium and cooling water,so it is resistant to corrosion and wear and have a more excellent performance.In addition,the main parts of the seal are mounted outside so we can stop the pump to check the status of sealing surface at any time and it's convenient to maintain.The seal has simple and compact structure, high reliability, long service life and can transport corrosive liquids which contain a large amount of solid particles(Note: the cooling water is clean water).

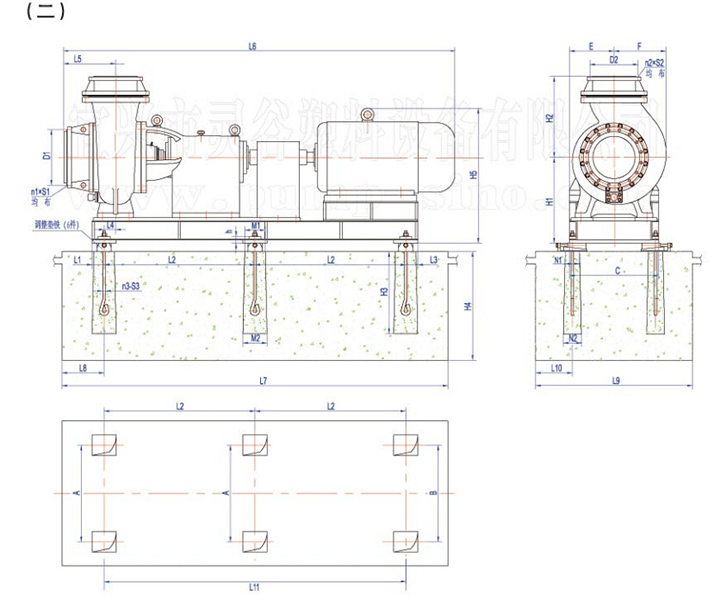

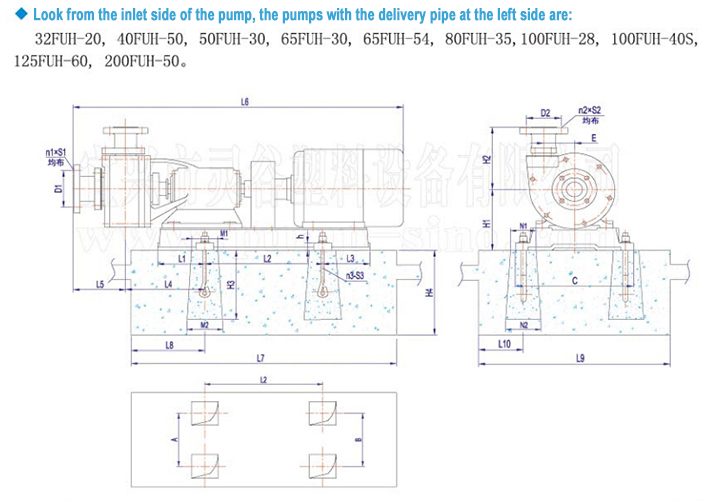

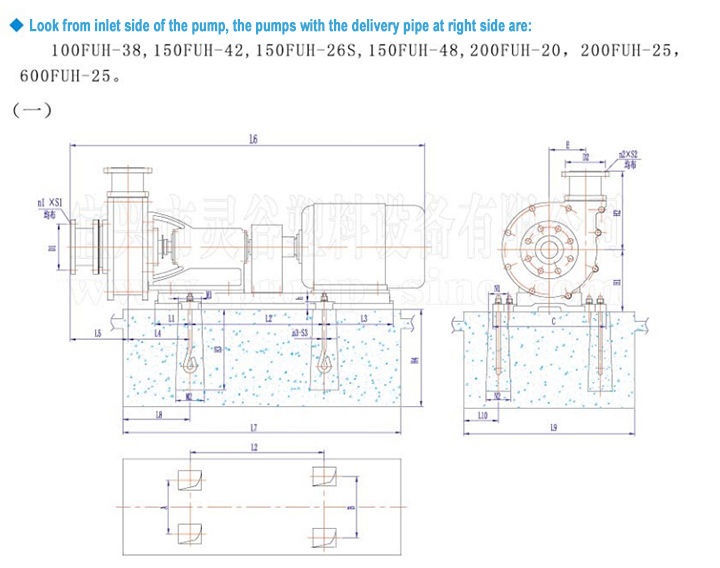

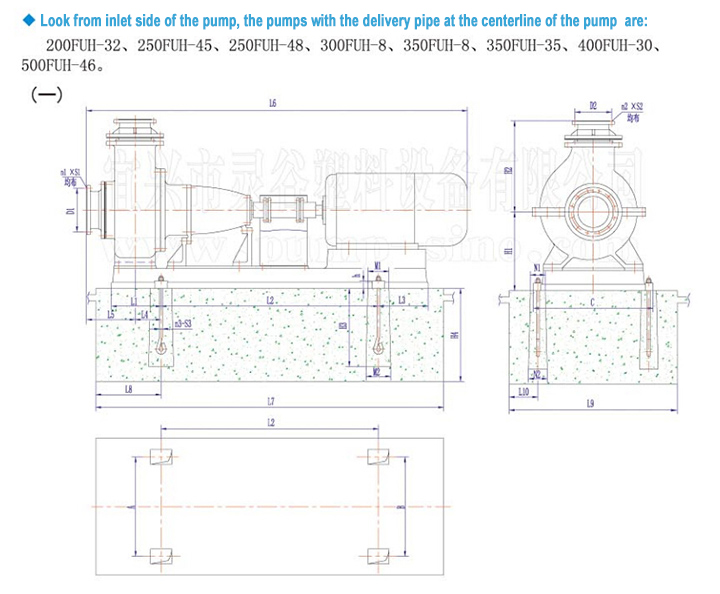

Model	Overall dimensions, installation dimension and foundation dimension (mm)																												Weig ht(kg)
Model	h	n3- S3	A	B	C	E	H1	H2	L1	L2	L3	L4	L5	L6	D1	n1× S1	D2	n2× S2	M1	M2	N1	N2	H3	L7	L8	L9	L10	H4	Weig ht(kg)
25 FUH -30	20	4- M16 ×300	260	260	300	81	165	193	97	336	97	204	176	88 5	100	4× Φ18	85	4× Φ14	90	120	80	110	380	700	182	500	120	450	75
32 FUH -20	20	4- M16 ×300	260	260	300	81	165	193	97	336	97	204	176	88 5	100	4× Φ18	85	4× Φ14	90	120	80	110	380	700	182	500	120	450	75
40 FUH -50	25	4- M16 ×400	380	380	440	12 2.5	248	190	190	480	193	316	85	11 95	110	4× M16	100	4× M16	90	120	80	110	480	1100	310	700	160	550	230
50 FUH -30	25	4- M16 ×300	320	320	370	96	208	212	160	400	160	269	178	11 20	125	4× Φ18	110	4× Φ18	90	120	80	110	380	900	250	600	140	450	145
65 FUH -30	25	4- M16 ×300	320	320	370	96	208	268	160	400	160	269	244	11 86	145	4× Φ18	125	4× Φ18	90	120	80	110	380	900	250	600	140	450	155
65 FUH -54	28	4- M16 ×400	330	420	470	126	310	313	184	620	216	335	245	14 80	145	4× Φ18	125	4× Φ18	90	120	80	110	480	1250	300	700	140	550	290
80 FUH -35	30	4- M16 ×400	450	450	530	110	290	248	195	482	195	326	203	13 20	160	8× Φ18	145	4× Φ18	90	120	80	110	480	1100	309	750	150	550	255
100 FUH -28	30	4- M16 ×400	450	450	530	10 9.5	290	241	195	482	195	332 .5	114	12 38	180	8× Φ18	160	8× Φ18	90	120	80	110	480	1100	309	750	150	550	300
100 FUH -40S	30	4- M20 ×400	385	480	540	136	335	363	200	660	246	344	227	16 27	180	8× Φ18	160	8× Φ18	120	150	100	130	470	1300	300	850	185	600	450
125 FUH -60	45	4- M20 ×500	510	610	670	16 0.5	370	377	250	935	250	322	296	19 97	210	8× Φ18	180	8× Φ18	120	150	100	130	560	1600	320	950	170	700	820
200 FUH -50	50	4- M20 ×500	690	750	810	232	498	431	195	1050	245	415	405	25 00	295	8× Φ22	240	8× Φ22	120	150	100	130	560	1800	300	1100	175	700	1530

Model

Overall dimensions, installation dimension and foundation dimension (mm)

Weig
ht(kg)

n3-S3

n1×
S1

n2×
S2

L10

100
FUH
-38

4-
M20
×400

460

520

120

335

337

161

680

166

299

229

14
78

180

8×
Φ18

160

8×
Φ18

120

150

100

130

470

1200

260

800

170

600

350

150
FUH
-42

4-
M20
×500

510

610

670

223

370

416

250

935

250

340

380

20
10

240

8×
Φ22

210

8×
Φ18

120

150

100

130

560

1600

320

950

170

700

780

150
FUH
-26S

4-
M20
×500

420

536

596

190

325

428

233

700

307

324

300

18
00

240

8×
Φ22

210

8×
Φ18

120

150

100

130

560

1450

350

900

182

700

510

150
FUH
-48

4-
M20
×500

510

610

670

223

400

416

212

935

345

340

380

21
95

240

8×
Φ22

210

8×
Φ18

120

150

100

130

560

1700

320

950

170

700

970

200
FUH
-20

4-
M20
×500

510

610

670

232

370

418

250

935

250

364

375

20
29

295

8×
Φ22

240

8×
Φ22

120

150

100

130

560

1600

320

950

170

700

880

200
FUH
-25

Q<600
Q≥600

4-
M20
×500

550

610

665

240

520

503

203

1200

387

436.5

475

265
2.5

295

8×
Φ22

295

8×
Φ22

120

150

100

130

560

2400

758

950

170

700

1200

350

12×Φ22

295

295 8×Φ22

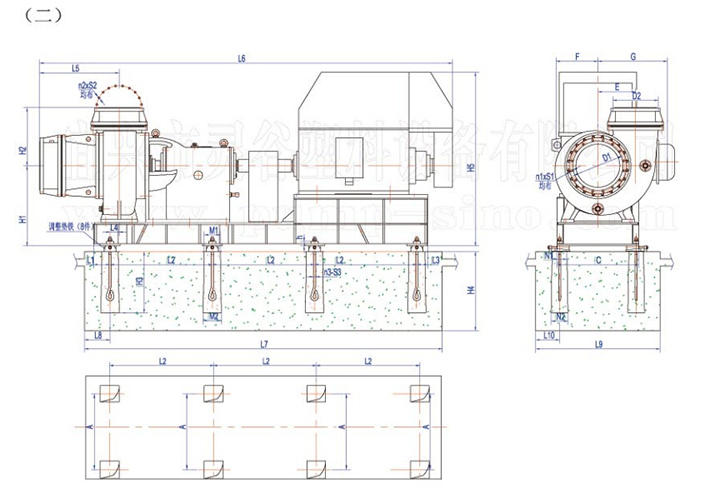

Model		Overall dimensions, installation dimension and foundation dimension (mm)																														Weig ht(kg)
		h	n3 -S3	A	C	E	H1	H2	L1	L2	L3	L4	L5	L6	D1	n1× S1	D2	n2× S2	M1	M2	N1	N2	H3	L7	L8	L9	L10	H4	H5	F	G
600 FUH -25	Y355 motor	65	8- M30 ×800	10 50	11 20	515	1115	808	225	11 00	165	12 4.5	10 88	47 90	725	20× Φ30	620	20× Φ27	250	280	220	250	850	41 00	400	17 00	325	11 00	17 70	560	69 0	12700
	Y400 motor									12 15	150			51 60										44 45					18 75	560	69 0
	YKK 400 motor									14 00	150			56 52										50 00					24 15	630	10 50
	YKK 450 motor									14 00	210			58 52										50 00					25 65	710	11 00
	YKK 500 motor									14 00	460			61 52										52 50					28 15	800	11 50
500 FUH -25	Y355 motor	65	8- M30 ×800	10 50	11 20	450	1065	923	150	11 00	150	164	951	46 15	620	20× Φ30	515	16× Φ27	250	280	220	250	850	41 00	400	17 00	325	11 00	17 70	560	69 0	10800
	Y400 motor									12 15	150			49 85										44 45					18 25	560	69 0
	YKK 400 motor									14 00	150			54 75										50 00					23 65	630	10 50
	YKK 450 motor									14 00	150			56 74										50 00					25 15	710	11 00
	YKK 500 motor									14 00	400			59 75										52 50					27 65	800	11 50

Model		Overall dimensions, installation dimension and foundation dimension (mm)																											Weight(kg)
		h	n3- S3	A	B	C	H1	H2	L1	L2	L3	L4	L5	L6	D1	n1× S1	D2	n2× S2	M1	M2	N1	N2	H3	L7	L8	L9	L10	H4
200 FUH -32		50	4- M20 ×500	670	670	740	465	590	320	1200	365	193	305	2250	295	8× Φ22	240	8× Φ22	120	150	100	130	550	21 00	430	10 50	190	700	10 50
250 FUH -45	Q< 800	60	4- M24 ×630	890	890	960	630	730	400	1750	400	210	390	3066	350	12× Φ22	295	8× Φ22	170	200	120	150	680	28 00	525	13 50	230	800	26 30
	Q≥ 800														400	12× Φ22	350	12× Φ22
250 FUH -48	Q< 800	60	4- M24 ×630	890	890	960	630	730	400	1750	400	210	390	3066	350	12× Φ22	295	8× Φ22	170	200	120	150	680	28 00	525	13 50	230	800	26 90
	Q≥ 800														400	12× Φ22	350	12× Φ22

Model		Overall dimensions, installation dimension and foundation dimension (mm)																															Weig ht(kg)
		h	n3-S3	A	B	C	H1	H2	L1	L2	L3	L4	L5	L6	D1	n1×S1	D2	n2×S2	M1	M2	N1	N2	H3	L7	L8	L9	L10	L11	H4	H5	B	F
350FUH-35	Y mo tor	55	6-M24×630	690	690	740	710	675	100	1250	100	95	407	3220	460	16×Φ22	400	12×Φ22	170	200	120	150	680	3200	350	1300	305	2500	900	1260	370	431	3145
	YK K mo tor				820	870				1585				4080										3850	340	1400	290	3170	900	1855	560	1000	3225
300FUH-25	Q＜950	35	4-M20×630	800	800	870	685	670	390	/	390	-210	357	3033	400	12×Φ22	400	12×Φ22	170	200	120	150	680	2780	515	1260	230	1750	800	982	435	432	2638
	Q≥950														460	16×Φ22	400	12×Φ22

Mode	Overall dimensions, installation dimension and foundation dimension (mm)																											weight (kg)
Mode	h	n3- S3	A	B	C	H1	H2	L1	L2	L3	L4	L5	L6	D1	n1× S1	D2	n2× S2	M1	M2	N1	N2	H3	L7	L8	L9	L10	H4	weight (kg)
300FUH-8	35	4- M20 ×500	68 0	68 0	75 0	57 5	410	521	1170	355	351	210	22 24	415	16× M20	480	16× Φ23	120	150	100	130	560	23 00	599	10 20	170	7 00	1700
350FUH-8	35	4- M20 ×500	68 0	68 0	75 0	60 0	461	366	1200	484	222	231	22 81	475	16× M20	480	16× Φ23	120	150	100	130	560	23 00	550	10 20	170	7 00	200
350FUH-12	35	4- M20 ×500	82 0	82 0	89 0	68 0	650	500	1250	490	315	352	26 20	475	16× Φ22	550	16× Φ22	120	150	100	130	550	24 55	610	1200	190	7 00	2500

	1.Flange size by GB / T9119-2010,1.0Mpa.
	2.The weight of the table is the weight of the machine when the standard motor is used.

Mode		Overall dimensions, installation dimension and foundation dimension (mm)																													weight
		h	n3-	A	C	H1	H2	L1	L2	L3	L4	L5	L6	D1	n1×	D2	n2×	M1	M2	N1	N2	H3	L7	L8	L9	L10	H4	H5	E	F	(kg)
			S3												S1		S2
400FUH-30	Y motor	60					920	110	98	110	115	506	38	570		500		220	250	200	230	850	40	380	1500	335	1100	14	443	55	5008
									0				18										00					85		0
			8-M30×800	830	885	830									16×		16×
	YKK								12				46		Φ27		Φ23						45	420				21	630	10	5868
	motor								20				88										00					30		50

	1.The inlet and outlet flanges are non-standard sizes.
	2.Y series motor is 380V ordinary motor, YKK series motor is 6000V high voltage motor.
	3.The weight of the table is the weight of the machine when the standard motor is used.

Mode		Overall dimensions, installation dimension and foundation dimension (mm)																													weight (kg)
		h	n3- S3	A	C	H1	H2	L1	L2	L3	L4	L5	L6	D1	n1× S1	D2	n2× S2	M1	M2	N1	N2	H3	L7	L8	L9	L10	H4	H5	E	F
500 FUH -46	Y335 motor	65	8- M30 ×800	10 50	11 20	10 65	860	150	11 00	150	172	800	44 56	725	20× Φ27	620	20× Φ27	250	280	220	250	850	41 00	400	17 00	325	11 00	17 20	/	655	107 35
	Y400 motor								12 15				48 26										44 45					18 25	/	/
	YKK 400 motor								14 00				53 16										50 00					23 65	630	10 50
	YKK 450 motor								14 00				55 16										50 00					25 15	710	11 00
	YKK 500 motor								14 00	40 0			58 16										52 50					27 65	800	11 50

	1.The inlet and outlet flanges are non-standard sizes.
	2.Y series motor is 380V ordinary motor, YKK series motor is 6000V high voltage motor.
	3.The weight of the table is the weight of the machine when the standard motor is used.
