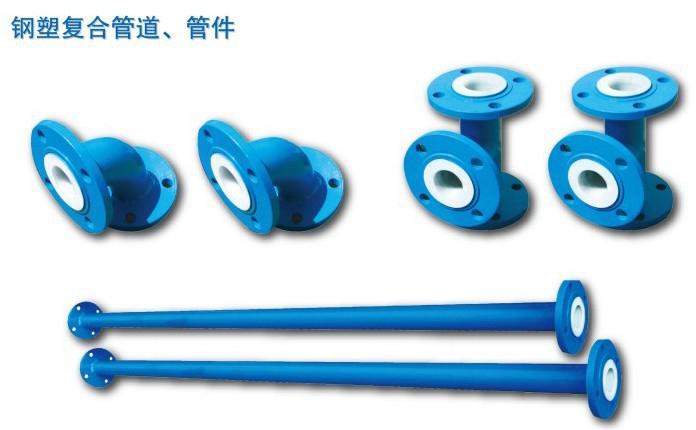

Composite metal plastic pipe and pipe fitting

I. Description

　　Steel plastic composite pipeline and pipe fitting are manufactured with metal thin walled tube and engineering plastic. It has high strength and rigidity, and excellent corrosion resistance.

II. Specification and size

DN	D1	D2	D3	D4	D5	n-d	B	S	L
25	25	65	85	115	35	4-Ф14	16	2.5	100mm to 4000mm at customer's request
32	31	75	100	140	42	4-Ф18	18	2.5
40	36	80	110	150	48	4-Ф18	18	3
50	48	95	125	165	60	4-Ф18	20	3
65	62	118	145	185	76	8-Ф18	20	3.5
80	74	130	160	200	89	8-Ф18	20	3.5
100	96	155	180	220	114	8-Ф18	22	4
125	121	180	210	250	140	8-Ф18	22	4
150	142	210	240	285	168	8-Ф22	24	6
200	193	265	295	340	219	8-Ф22	24	6

DN1/DN2	D11	D12	D13	n-d1	D21	D22	D23	m-d2	L
25/32	25	85	115	4-Ф14	31	100	140	4-Ф18	120
32/40	31	100	140	4-Ф18	36	110	150	4-Ф18	120
32/50	31	100	140	4-Ф18	48	125	165	4-Ф18	120
40/50	36	110	150	4-Ф18	48	125	165	4-Ф18	120
40/65	36	110	150	4-Ф18	62	145	185	8-Ф18	120
50/65	48	125	165	4-Ф18	62	145	185	8-Ф18	120
50/80	48	125	165	4-Ф18	74	160	200	8-Ф18	120
65/80	62	145	185	8-Ф18	74	160	200	8-Ф18	120
65/100	62	145	185	8-Ф18	96	180	220	8-Ф18	120
80/100	74	160	200	8-Ф18	96	180	220	8-Ф18	120
80/125	74	160	200	8-Ф18	121	210	250	8-Ф18	180
100/125	96	180	220	8-Ф18	121	210	250	8-Ф18	180
100/150	96	180	220	8-Ф18	142	240	285	8-Ф22	180
125/150	121	210	250	8-Ф18	142	240	285	8-Ф22	180
125/200	121	210	250	8-Ф18	193	295	340	8-Ф22	180
150/200	142	240	285	8-Ф22	193	295	340	8-Ф22	180

DN	D1	D2	D3	D4	D5	n-d	B	H
25	25	55	85	115	35	4-Ф14	16	90
32	32	65	100	140	42	4-Ф18	18	105
40	40	75	110	150	48	4-Ф18	18	110
50	48	85	125	165	60	4-Ф18	20	110
65	64	105	145	185	76	8-Ф18	20	145
80	73	120	160	200	89	8-Ф18	20	135
100	96	145	180	220	114	8-Ф18	22	165
125	121	175	210	250	140	8-Ф18	22	175
150	142	200	240	285	168	8-Ф22	24	175
200	193	255	295	340	219	8-Ф22	24	220

DN	D1	D2	D3	D4	D5	n-d	B	H
25	25	55	85	115	35	4-Ф14	16	90
32	31	65	100	140	42	4-Ф18	18	95
40	36	75	110	150	48	4-Ф18	18	100
50	48	85	125	165	60	4-Ф18	20	110
65	61	105	145	185	76	8-Ф18	20	120
80	73	120	160	200	89	8-Ф18	20	135
100	96	145	180	220	114	8-Ф18	22	165
125	121	175	210	250	140	8-Ф18	22	175
150	142	200	240	285	168	8-Ф22	24	175
200	193	255	295	340	219	8-Ф22	24	220

DN	D1	D2	D3	D4	n-d	B	H
25	24	55	85	115	4-Ф14	16	90
32	32	65	100	140	4-Ф18	18	105
40	40	75	110	150	4-Ф18	18	110
50	48	85	125	165	4-Ф18	20	130
65	64	105	145	185	8-Ф18	20	145
80	73	120	160	200	8-Ф18	20	135
100	96	145	180	220	8-Ф18	22	165
125	120	175	210	250	8-Ф18	22	175
150	142	200	240	285	8-Ф22	24	175
200	193	255	295	340	8-Ф22	24	220

DN	D1	D2	D3	D4	n-d	B	L
25	24	55	85	115	4-Ф14	16	50
32	30	65	100	140	4-Ф18	18	50
40	35	75	110	150	4-Ф18	18	60
50	48	85	125	165	4-Ф18	20	65
65	58	105	145	185	8-Ф18	20	70
80	73	120	160	200	8-Ф18	20	75
100	96	145	180	220	8-Ф18	22	80
125	120	175	210	250	8-Ф18	22	95
150	142	200	240	285	8-Ф22	24	105
200	193	255	295	340	8-Ф22	24	140

Performance curve Performance parameters Structure description Overall size and mounting size of the pump
